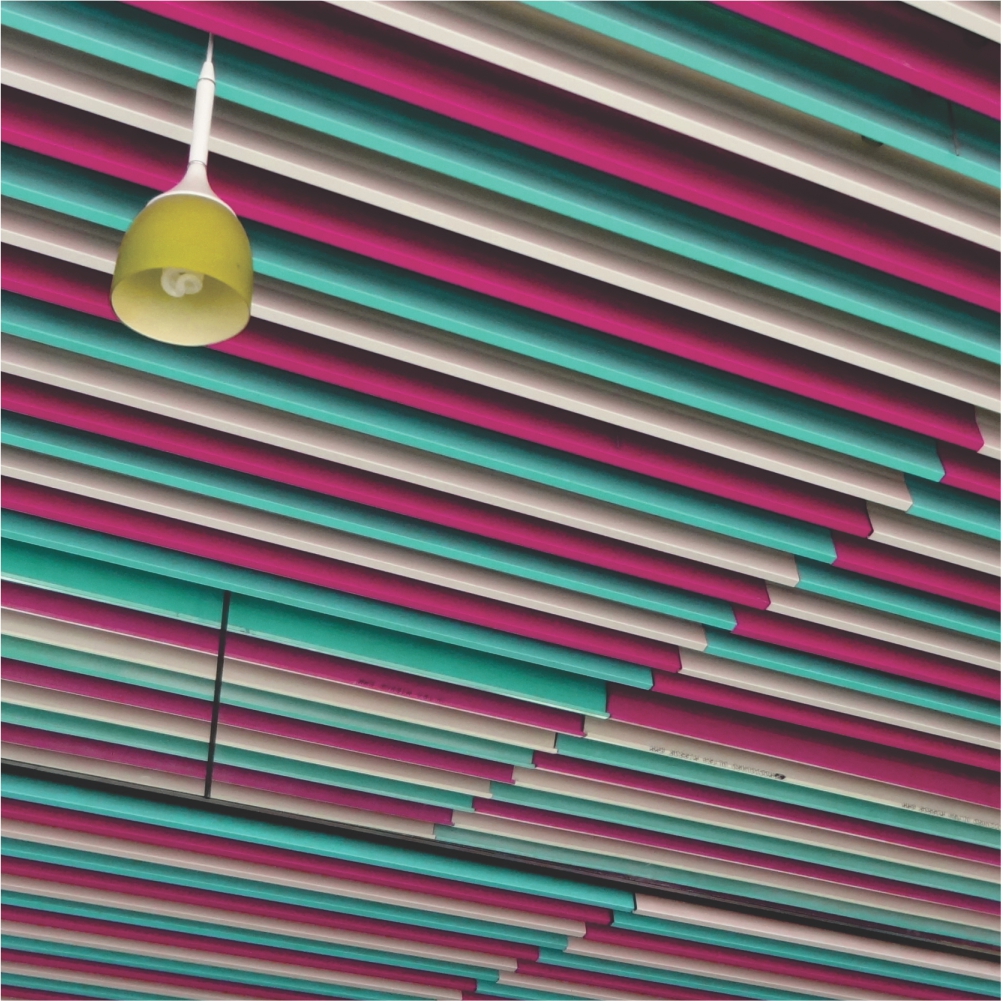

HYPERSIL® make Z Shape In-line type screen ceiling, can adjust the visual height of the house, and can hide all the pipes and other facilities at the bottom of the floor, and also makes the sunlight entering into the room or light soft and uniform. The suspended pieces ceiling will not affect noise-absorbing of the house and the installation of facilities including fire-extinguishing sprinkler, air conditioning systems, etc.,
Z SHAPED SCREEN
Products
Our Prodcuts
Passages, Balconies, Lift Lobbies, Exhibition Hall, Reception Areas.

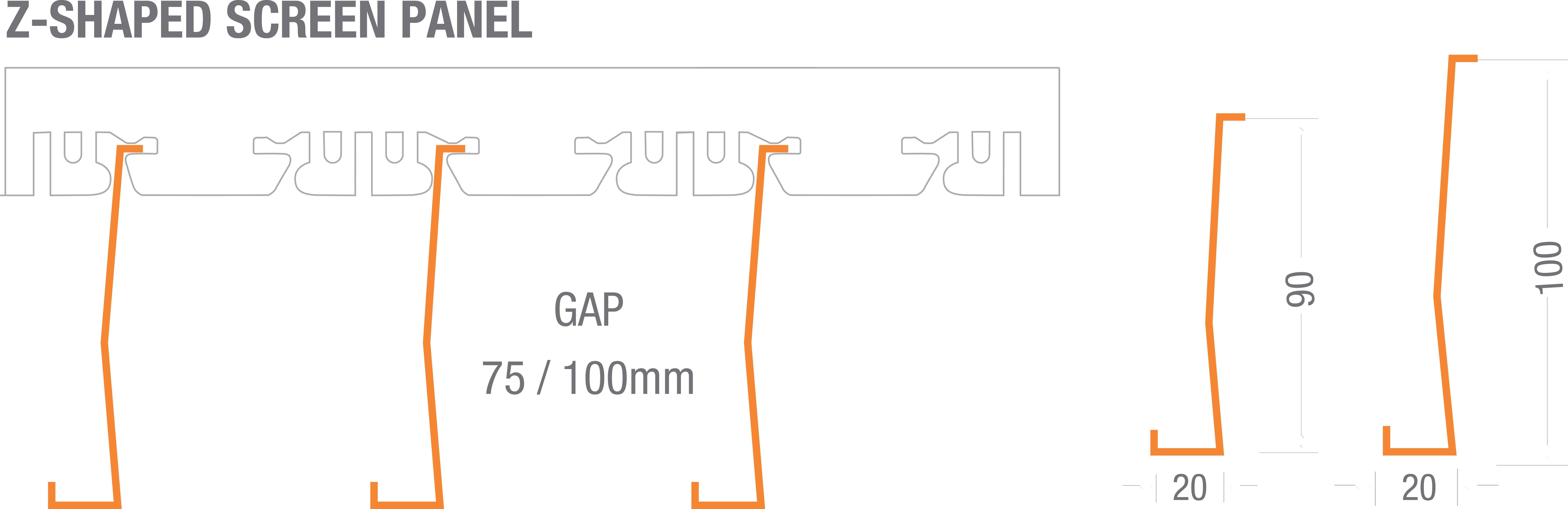

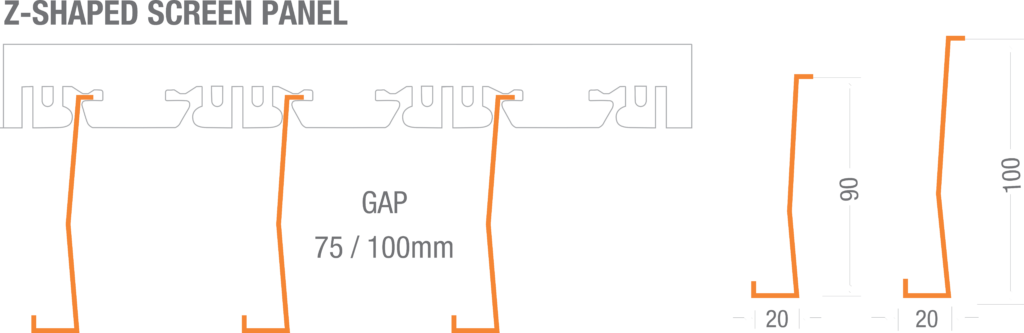

Panels: Height 90mm / 100mm,20mm width, length up to 3 mtr.
Material: 0.55 / 0.60mm Galvanized Steel & 0.71mm Aluminium – TCT.
Carrier: Center to center 75mm / 100mm made of 0.50mm / 0.60mm thick Black Coil Coated Galvanised Steel /Powder Coated.20mm wide, 40mm deep.
Paint finish: 55 microns thick powder coating.
Suspension: 4mm dia Galvanized Rod, height adjustment Spring Steel Big clip, Panel coupler, GS Wall Angle.
