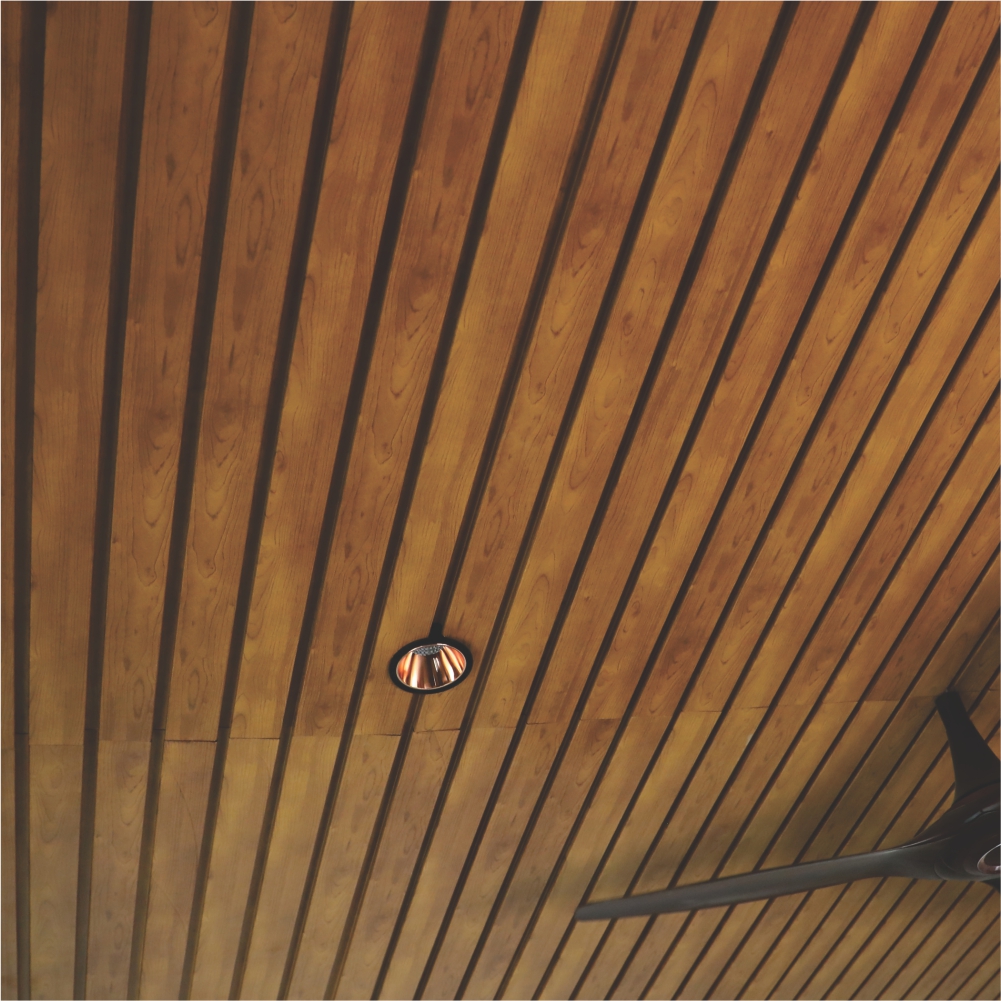

HYPERSIL® Linear Multi C closed ceiling system consisting of 60mm / 135mm/ 210mm wide square shaped panels which can be easily clipped on to a carrier. The Panels have a 25 mm wide flange that closes-off the 16 mm joint between the panels. A wide choice of colours and finishes are available. Panels can be perforated for enhanced acoustics.
LINEAR 60C / 135C / 210C
Products
Our Prodcuts
Passages, Balconies, Lift Lobbies, Bathroom, Wall Cladding

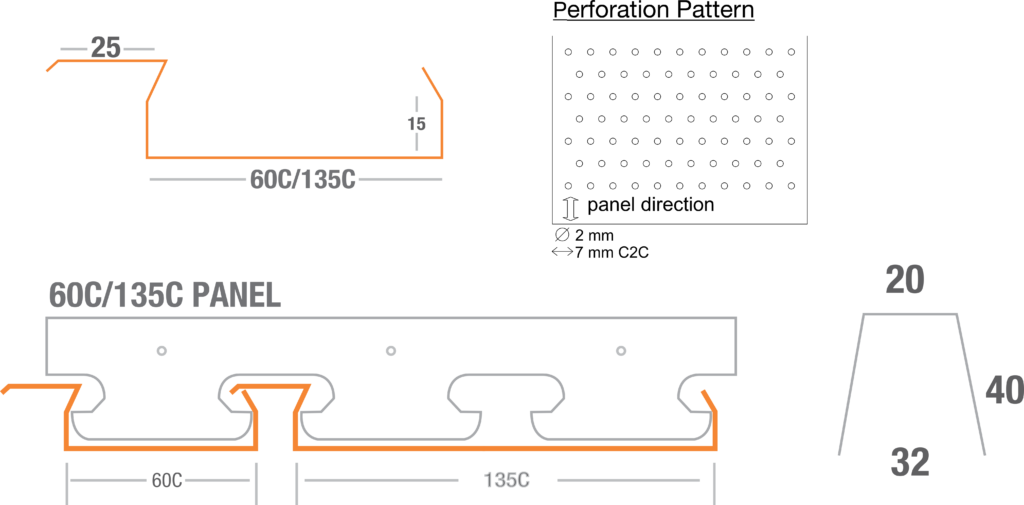

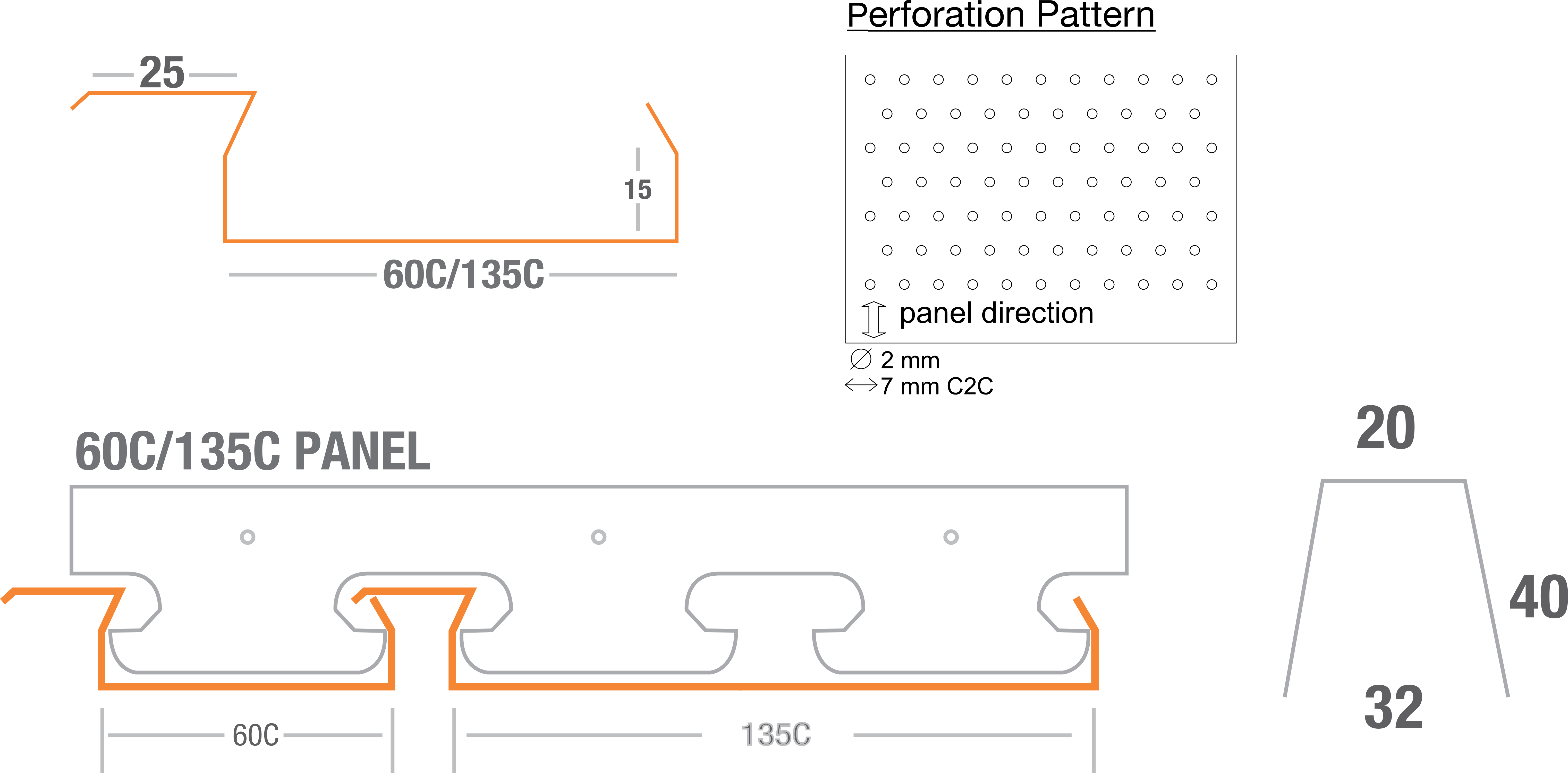

Panels: Square edge, 60mm / 135mm / 210mm wide, 15mm deep, length up to 3 mtr.
Material: 0.45 / 0.50mm Galvanized Steel & 0.50 / 0.65mm Aluminium – TCT.
Carrier: 20mm wide, 40mm deep of 0.50mm / 0.60mm thick Black Coil Coated Galvanised Steel to hold panel in module of 75/150/225
Perforation: 2mm dia 5mm pitch Diagonal pattern. 2mm dia 5mm pitch Regular Pattern.
Paint finish: 55 microns thick powder coating on exposed surface or 25 microns polyester coil coated over primer on visible surface with primer coat on rear side.
Suspension: 4mm dia Galvanized Rod, height adjustment Spring Steel Big clip, Panel coupler, GS/Aluminium Edge Profile 18mm (Horizontal) * 20mm (Vertical).
