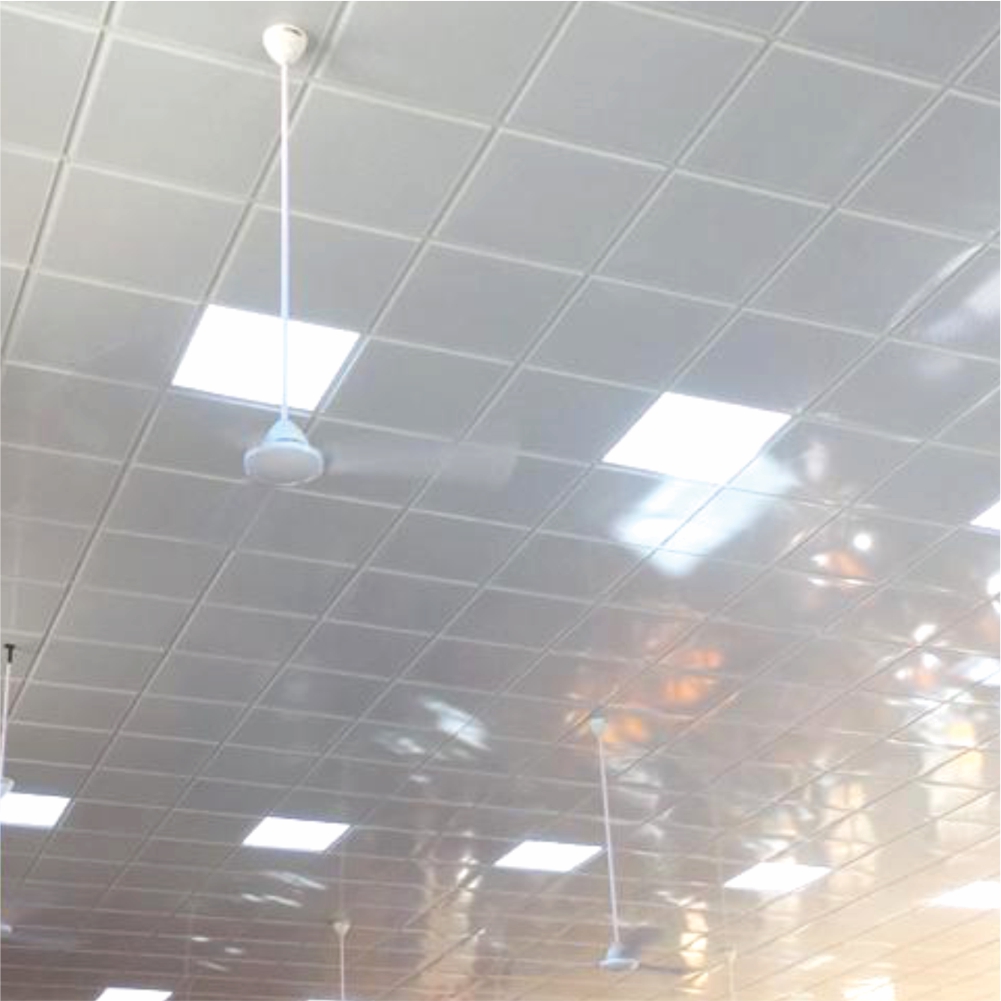

HYPERSIL® make Lay-in metal tiles come in square and rectangular shape, designed with formed edges to rest on the flange s of exposed T 15 and T24 Grid systems.

Lay-in panels are de-mountable tiles with flash or tegular effect which is particularly suitable for commercial, retail and display areas where access to the ceiling plenum is required.

Metal ceiling systems have been tested for their acoustic performance of sound absorption. Perforated products can be supplied with a variety of factory fitted acoustic in fill options.

Passages, Lift Lobbies, Acoustical Halls, Theaters etc.

Panels: Square / Bevelled edge of size and detail as above & Customized.

Material: 0.40 / 0.45 / 0.50mm Galvanized Steel & 0.65 / 0.70mm Aluminium – TCT.

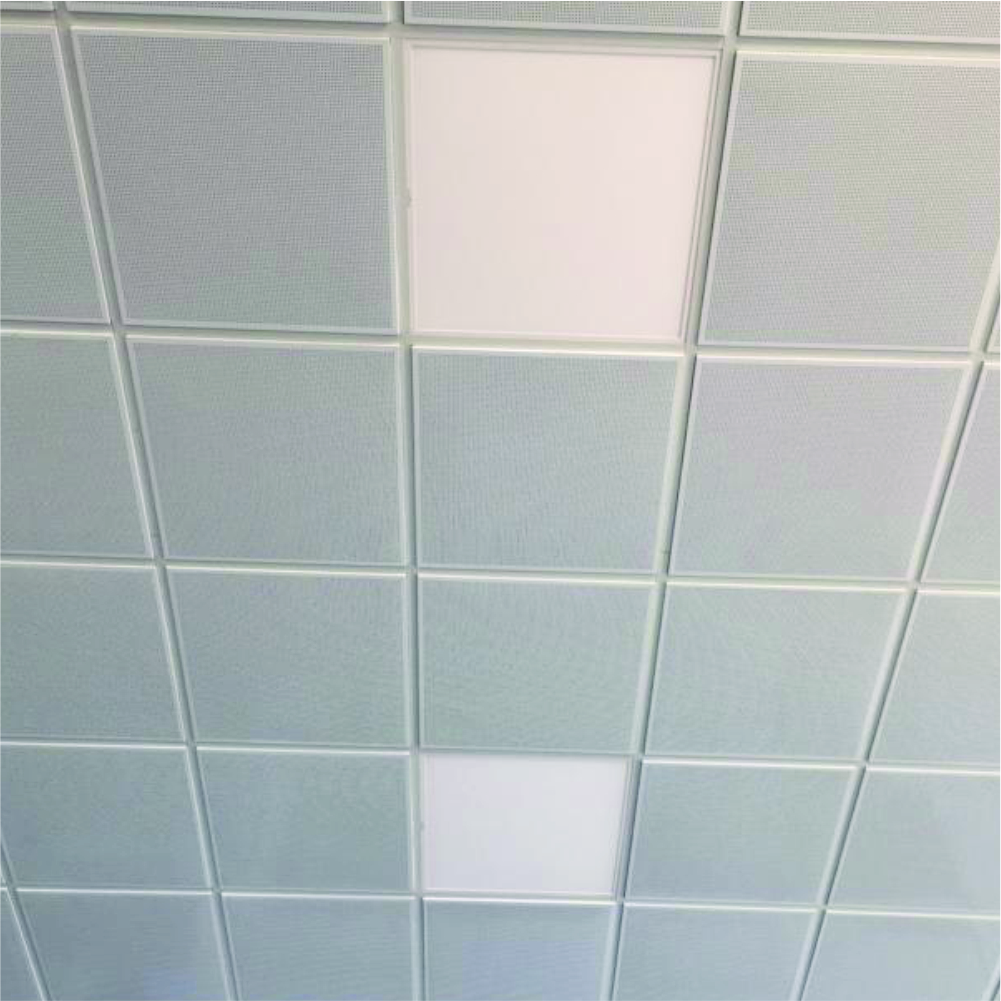

Perforation Details: SR25 2.5mm Diagonal pattern 5mm pitch 20% open area.

Paint finish: 55 microns thick powder coating on exposed surface or 25 microns polyester coil coated over primer on visible surface with primer coat on rear side.

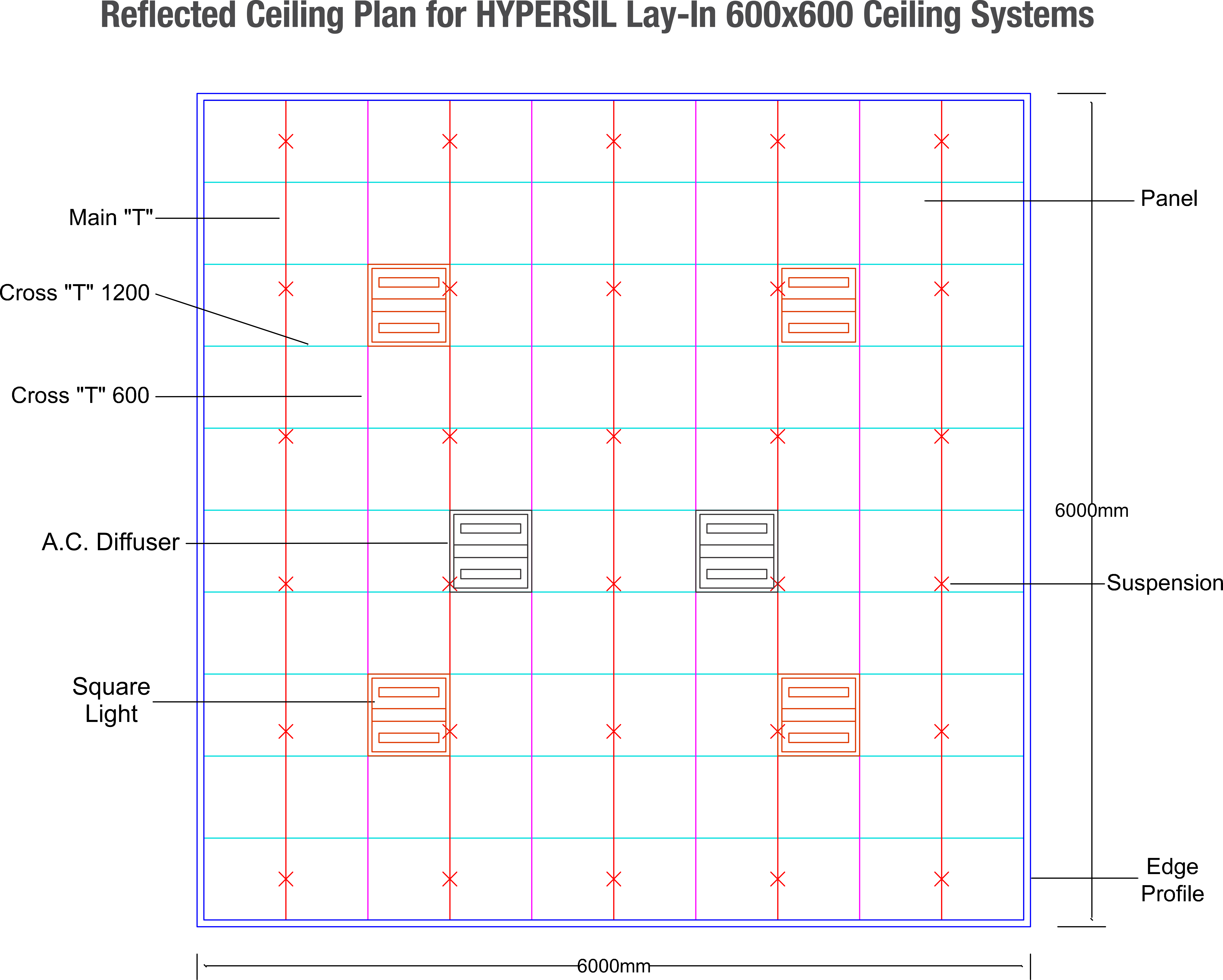

Suspension: 4mm dia Galvanized Rod, Spring steel Butterfly clip, GSEdge Profile & recommended “T” grid system.
